Description

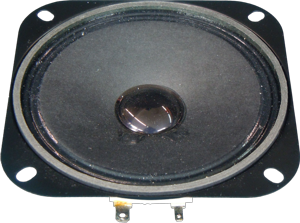

Very powerful broadband loudspeaker with 4 Ohm impedance. Due to the relatively low weight, it is ideal for model aircraft.

Measures about 4" square and 1 2/" high

Weight: 5.6oz

Suitable for following modules: Sound speed controller of the SFR-series Mini sound module MSM-1 Sound module USM-RC-2 and USM-RC-3 Audio amplifier PV-100W (up to 18 V)

Technical Data

Typ:	Visaton R 10 S TE, 4 Ohm
Impedance:	4 Ohm
Performance:	25 Watt
Frequency range (-10 dB):	100-13000 Hz
Acoustic pressure:	90 dB
Membrane:	Humidity-resistant paper membrane
Size:	102 x 102 mm
Installation depth:	36 mm
Weight:	160 g
